7 Github Actions Tricks I Wish I Knew Before I Started

Here are 7 tricks with github actions that changed my life (or at least my CI/CD pipeline). These tricks helped me create a more maintainable workflows code as well as boosted performance of the whole CI/CD process.

If you haven’t used github actions before, you can watch my talk on how to setup CI/CD with github actions. This will get you up to speed real quick.

Now imagine you need to setup a massive CI/CD workflow. It starts with a Pull Request, which is usually the “first point of contact”. It then moves on to a post merge workflow. This post merge workflow splits into deploy, sanity or even multiple deployments. How would you trigger all of them? How would you synchronise them all? Github Actions triggers got you covered

Table of Contents

#1: How to Use Github Action Triggers

Triggers is what starts a workflow. Here’s how it looks like:

name: Pull Request

on:
  pull_request:
    branches:
      - main

The above code is pretty much self explanatory. The workflow will trigger on every pull request to the main branch. Not only that, it will also trigger for any push to the branch that is initiating the pull request.

This is a good place to run your tests, linting and all the automated QA you can think of.

Now that we have our Pull Request covered, we’d like to handle the code after the integration:

on:
  push:
    branches:
      - main

In the above code we trigger on push to main. This will usually happen after a pull request was merged (see Repository Integration Rules).

What happens after we push to main ? That’s definitely up to you. You can run sanity checks, setup a canary deployment, deploy a next version of your app and more. You can even walk on the edge and deploy a stable version if all tests pass and you have enough confidence.

You might not yet be confident enough in the process to deploy on push to main. In this case, you’d probably want to give the code some time to “cook” in main or develop before you release a stable release. You can create a manual trigger in order to receive input from the user:

on:
  workflow_dispatch:
    inputs:
      version:
        description: 'Version to bump to'
        required: false

Here we setup a workflow manual dispatch that accepts an input “version”. This way, a user can manually trigger a version bump from the Github web interface!

You just head over to the “Actions” tab, select the relevant action and the UI will take you from there:

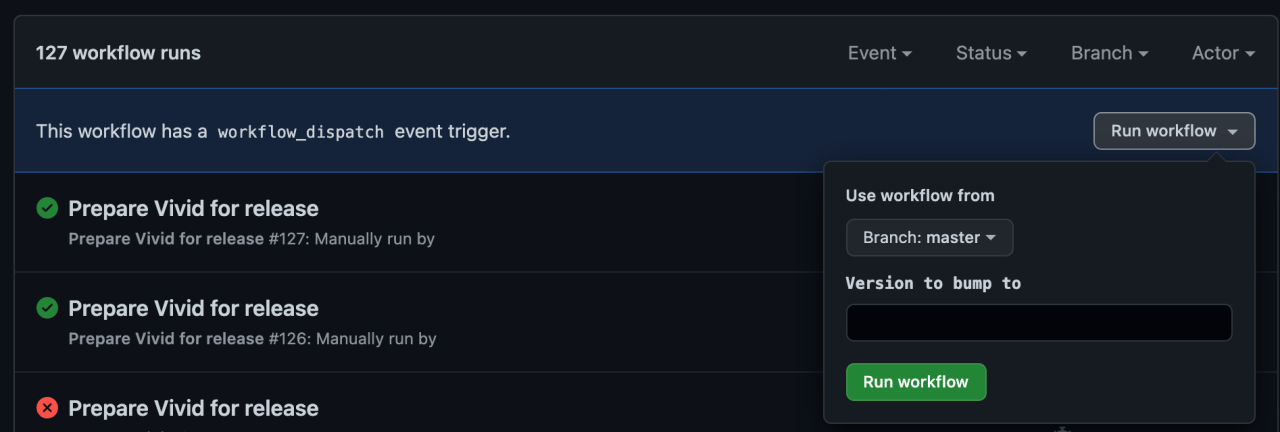

In the image we can see the “Run workflow” option (top-right). It opens a menu that allows us to add the input we’ve set in the workflow yml.

Our workflow works great but… now it triggers on EVERYTHING that’s happening in the pull request.

Another cool feature that solves hard cases is the ability to condition the triggers even further:

on:
  pull_request:
    types:
      - opened
      - synchronize
      - reopened
      - ready_for_review
      - converted_to_draft
    branches:
      - main

This code is the same example as the first, only now we state the type of pull request events we’d like to trigger our workflow for.

Another example is to listen to release tags:

on:
  push:
    tags:
      - v*

Here we listen to tags that starts with the letter v as a convention to release tags.

You can find the full list of triggers and their API in the official documentation: https://docs.github.com/en/actions/learn-github-actions/events-that-trigger-workflows

Another way is by using an if statement in the jobs themselves:

on:
  pull_request:
    types: [closed]
    branches: [main]

jobs:
  build-deploy-demo-dev:
    runs-on: ubuntu-18.04
    if: github.event.pull_request.merged == true

Here we trigger on the PR’s close event. The job itself is fine tuning it a bit more – we’d like to trigger this for closed PRs, but only those with merged status.

Another conditional can be to not trigger certain jobs for drafts:

if: github.event.pull_request.draft == false

This will save us valuable computation time (and if you are a green person – also cut the CO2 emissions). I mean, if we set the PR as a draft, there’s no need to run all the heavy tests on it, right? Maybe just build and deploy a demo would suffice for a draft…

Armed with these tools, you can set the trigger to fit your need and build a full CI/CD flow (or actually, any automation). For instance, you can build iOS apps even if you do not have a Mac (by using a MacOS machine with a manual trigger).

#2: Reusable Workflows with Workflow Calls

Triggers are great, but this one gets a full title of its own.

Now let’s say you’ve created a build process. You also create a test process. Now – you’d like to run the build and the tests for 3 browsers – chrome, firefox and Safari. The catch? Safari runs only on MacOS. Darn…

So… you spin up 3 MacOS machines. You notice 2 things:

MacOS machines are much slower and also their internet connection is much slower
MacOS machines are much more expensive and your devops ppl (or your finance team) are sending you nice (or rather polite) emails about over-quota (real story).

In addition, you need the test coverage only from the chrome run.

I think you got the gist of it – it can be complex.

So… you create 3 different jobs – one for each browser. Lots of code, not nice (you don’t really have to read the code – just get that it is long and not “nice”):

	name: Compile & Test

	on:
	pull_request:
	branches:
	– master

	jobs:
	cache-yarn-and-build:
	runs-on: ubuntu-20.04
	env:
	ARTIFACTORY_AUTH_TOKEN: ${{ secrets.ARTIFACTORY_AUTH_TOKEN }}

	steps:
	– name: Checkout
	uses: actions/checkout@v2
	with:
	token: ${{ secrets.PAT }}

	– name: Setup NodeJS 14
	uses: actions/setup-node@v2
	with:
	node-version: 14

	– name: Install yarn
	run: npm install -g yarn

	– name: Get yarn cache directory path
	id: yarn-cache-dir-path
	run: echo "::set-output name=dir::$(yarn config get cacheFolder)"

	– name: Cache yarn dependencies
	uses: actions/cache@v2
	id: yarn-cache
	with:
	path: \|
	${{ steps.yarn-cache-dir-path.outputs.dir }}
	**/node_modules
	key: vivid-cache-yarn-${{ hashFiles('**/package.json') }}

	– name: Install packages
	if: steps.yarn-cache.outputs.cache-hit != 'true'
	run: yarn install

	– name: Build components
	run: yarn compile

	– name: Cache build
	uses: actions/cache@v2
	id: build-cache
	with:
	path: \|
	common
	components
	key: vivid-cache-build-${{ github.event.pull_request.head.sha }}

	test-safari:
	needs: cache-yarn-and-build
	runs-on: macOS-latest
	env:
	ARTIFACTORY_AUTH_TOKEN: ${{ secrets.ARTIFACTORY_AUTH_TOKEN }}

	steps:
	– name: Checkout
	uses: actions/checkout@v2
	with:
	token: ${{ secrets.PAT }}

	– name: Setup NodeJS 14
	uses: actions/setup-node@v2
	with:
	node-version: 14

	– name: Install yarn
	run: npm install -g yarn

	– name: Get yarn cache directory path
	id: yarn-cache-dir-path
	run: echo "::set-output name=dir::$(yarn config get cacheFolder)"

	– name: Cache yarn dependencies
	uses: actions/cache@v2
	id: yarn-cache
	with:
	path: \|
	${{ steps.yarn-cache-dir-path.outputs.dir }}
	**/node_modules
	key: vivid-cache-yarn-${{ hashFiles('**/package.json') }}

	– name: Install packages
	if: steps.yarn-cache.outputs.cache-hit != 'true'
	run: yarn install

	– name: Cache build
	uses: actions/cache@v2
	id: build-cache
	with:
	path: \|
	common
	components
	key: vivid-cache-build-${{ github.event.pull_request.head.sha }}

	– name: Build components
	if: steps.build-cache.outputs.cache-hit != 'true'
	run: yarn compile

	– name: Test components
	run: yarn test:safari

	– name: Upload Safari coverage as an artifact
	uses: actions/upload-artifact@v2
	with:
	name: safari-coverage
	path: ./coverage/report-cobertura/coverage.xml

	test-firefox:
	needs: cache-yarn-and-build
	runs-on: ubuntu-20.04
	env:
	ARTIFACTORY_AUTH_TOKEN: ${{ secrets.ARTIFACTORY_AUTH_TOKEN }}

	steps:
	– name: Checkout
	uses: actions/checkout@v2
	with:
	token: ${{ secrets.PAT }}

	– name: Setup NodeJS 14
	uses: actions/setup-node@v2
	with:
	node-version: 14

	– name: Install yarn
	run: npm install -g yarn

	– name: Get yarn cache directory path
	id: yarn-cache-dir-path
	run: echo "::set-output name=dir::$(yarn config get cacheFolder)"

	– name: Cache yarn dependencies
	uses: actions/cache@v2
	id: yarn-cache
	with:
	path: \|
	${{ steps.yarn-cache-dir-path.outputs.dir }}
	**/node_modules
	key: vivid-cache-yarn-${{ hashFiles('**/package.json') }}

	– name: Install packages
	if: steps.yarn-cache.outputs.cache-hit != 'true'
	run: yarn install

	– name: Cache build
	uses: actions/cache@v2
	id: build-cache
	with:
	path: \|
	common
	components
	key: vivid-cache-build-${{ github.event.pull_request.head.sha }}

	– name: Build components
	if: steps.build-cache.outputs.cache-hit != 'true'
	run: yarn compile

	– name: Test components
	run: yarn test:firefox

	– name: Upload firefox coverage as an artifact
	uses: actions/upload-artifact@v2
	with:
	name: firefox-coverage
	path: ./coverage/report-cobertura/coverage.xml

	test-chrome:
	needs: cache-yarn-and-build
	runs-on: ubuntu-20.04
	env:
	ARTIFACTORY_AUTH_TOKEN: ${{ secrets.ARTIFACTORY_AUTH_TOKEN }}

	steps:
	– name: Checkout
	uses: actions/checkout@v2
	with:
	token: ${{ secrets.PAT }}

	– name: Setup NodeJS 14
	uses: actions/setup-node@v2
	with:
	node-version: 14

	– name: Install yarn
	run: npm install -g yarn

	– name: Get yarn cache directory path
	id: yarn-cache-dir-path
	run: echo "::set-output name=dir::$(yarn config get cacheFolder)"

	– name: Cache yarn dependencies
	uses: actions/cache@v2
	id: yarn-cache
	with:
	path: \|
	${{ steps.yarn-cache-dir-path.outputs.dir }}
	**/node_modules
	key: vivid-cache-yarn-${{ hashFiles('**/package.json') }}

	– name: Install packages
	if: steps.yarn-cache.outputs.cache-hit != 'true'
	run: yarn install

	– name: Cache build
	uses: actions/cache@v2
	id: build-cache
	with:
	path: \|
	common
	components
	key: vivid-cache-build-${{ github.event.pull_request.head.sha }}

	– name: Build components
	if: steps.build-cache.outputs.cache-hit != 'true'
	run: yarn compile

	– name: Test components
	run: yarn test:chrome

	– name: Upload chrome coverage as an artifact
	uses: actions/upload-artifact@v2
	with:
	name: chrome-coverage
	path: ./coverage/report-cobertura/coverage.xml

	– name: Upload chrome lcov coverage as an artifact
	uses: actions/upload-artifact@v2
	with:
	name: chrome-lcov-coverage
	path: ./coverage/report-lcov/lcov.info

	code-standards:
	needs: cache-yarn-and-build
	runs-on: ubuntu-20.04
	env:
	ARTIFACTORY_AUTH_TOKEN: ${{ secrets.ARTIFACTORY_AUTH_TOKEN }}

	steps:
	– name: Checkout
	uses: actions/checkout@v2
	with:
	token: ${{ secrets.PAT }}

	– name: Setup NodeJS 14
	uses: actions/setup-node@v2
	with:
	node-version: 14

	– name: Install yarn
	run: npm install -g yarn

	– name: Get yarn cache directory path
	id: yarn-cache-dir-path
	run: echo "::set-output name=dir::$(yarn config get cacheFolder)"

	– name: Cache yarn dependencies
	uses: actions/cache@v2
	id: yarn-cache
	with:
	path: \|
	${{ steps.yarn-cache-dir-path.outputs.dir }}
	**/node_modules
	key: vivid-cache-yarn-${{ hashFiles('**/package.json') }}

	– name: Install packages
	if: steps.yarn-cache.outputs.cache-hit != 'true'
	run: yarn install

	– name: Cache build
	uses: actions/cache@v2
	id: build-cache
	with:
	path: \|
	common
	components
	key: vivid-cache-build-${{ github.event.pull_request.head.sha }}

	– name: Build components
	if: steps.build-cache.outputs.cache-hit != 'true'
	run: yarn compile

	– name: Dependencies check
	run: yarn dep-check

	– name: Lint sources
	run: yarn lint

	– name: Ensure all autogenerated files committed
	run: yarn compile && sh ./scripts/ensure-all-committed.sh

	code-coverage:
	needs: test-chrome
	runs-on: ubuntu-20.04

	steps:
	– name: Checkout
	uses: actions/checkout@v2
	with:
	token: ${{ secrets.PAT }}

	– name: Setup NodeJS 14
	uses: actions/setup-node@v2
	with:
	node-version: 14

	– name: Download artifact chrome-lcov-coverage
	uses: actions/download-artifact@v2
	with:
	name: chrome-lcov-coverage

	– name: Coveralls
	uses: coverallsapp/github-action@master
	with:
	github-token: ${{ secrets.GITHUB_TOKEN }}
	path-to-lcov: ./lcov.info
	flag-name: Unit

view raw compile-and-test-yml hosted with ❤ by GitHub

324 lines of code. WOW! Notice the section of the tests test-chrome, test-safari and test-firefox. They are practically the same except minor changes.

Now that’s a super-long and highly non-DRY piece of yml. All of this code that’s repeating itself – if I need to make one change, I’d probably need to change all three jobs (another real, sad, story).

How to Use Github Actions Matrix to Simplify a Flow?

So… what can we do? When Github Actions started, we had an option to kind of automate this by using a Matrix. The matrix would set some variables and then permutate them. How many variables do we have here? Let’s see:

3 browsers
2 Operating systems (OS, and linux)
Test coverage boolean

That’s 3 times 2 times 2. How does the matrix setup look like? Make sure you are sitting before you look at the code:

	strategy:
	max-parallel: 10
	matrix:
	os:
	– ubuntu-20.04
	– macos-latest
	browser:
	– SafariNative
	– ChromeHeadless
	– FirefoxHeadless
	exclude:
	– os: ubuntu-20.04
	browser: SafariNative
	– os: macos-latest
	browser: FirefoxHeadless
	– os: macos-latest
	browser: ChromeHeadless
	include:
	– browser: ChromeHeadless
	browser_name: Chrome
	report_coverage: true
	– browser: FirefoxHeadless
	browser_name: Firefox
	report_coverage: false
	– browser: SafariNative
	browser_name: Safari
	report_coverage: false

view raw matrix-definition.yml hosted with ❤ by GitHub

It’s important that our software runs on both Ubuntu and MacOS operating systems. However, we need to make sure that Safari is excluded from running on Ubuntu, while Firefox and Chrome are excluded from running on MacOS. Additionally, we need to make sure that the opposite is included. Finally, we require a coverage report to be included specifically for Chrome.

What a mess! The final code is really non-readable (meaning – hard to read, but we devs are highly dramatic):

	name: Master Pull Request

	on:
	pull_request:
	types:
	– opened
	– synchronize
	– reopened
	– ready_for_review
	– converted_to_draft
	branches:
	– master

	concurrency:
	group: ci-tests-${{ github.ref }}-1
	cancel-in-progress: true

	jobs:
	build:
	timeout-minutes: 15
	if: github.event.pull_request.draft == false
	name: Build
	runs-on: ubuntu-20.04
	env:
	GITHUB_TOKEN: ${{ secrets.VNG_VIVID_PAT }}
	steps:
	– uses: actions/checkout@v2
	– run: printf "registry=https://npm.pkg.github.com/Vonage\n_authToken=\${GITHUB_TOKEN}\n//npm.pkg.github.com/:_authToken=\${GITHUB_TOKEN}\nalways-auth=true" > .npmrc
	– uses: actions/setup-node@v2
	with:
	node-version: 14
	– uses: actions/cache@v2
	with:
	path: "**/node_modules"
	key: ${{ hashFiles('yarn.lock') }}
	– run: yarn install –frozen-lockfile –network-timeout 100000
	env:
	PLAYWRIGHT_SKIP_BROWSER_DOWNLOAD: 1
	– run: yarn lerna run build –stream –concurrency=15 –include-dependencies
	– run: tar -zcf /tmp/vivid-env.tar.gz .
	– uses: actions/upload-artifact@v2
	with:
	name: workspace
	path: /tmp/vivid-env.tar.gz
	test:
	if: github.event.pull_request.draft == false
	needs: build
	name: "Test Components on ${{ matrix.browser_name }}"
	runs-on: ${{ matrix.os }}
	env:
	GITHUB_TOKEN: ${{ secrets.VNG_VIVID_PAT }}
	strategy:
	max-parallel: 10
	matrix:
	os:
	– ubuntu-20.04
	– macos-latest
	browser:
	– SafariNative
	– ChromeHeadless
	– FirefoxHeadless
	exclude:
	– os: ubuntu-20.04
	browser: SafariNative
	– os: macos-latest
	browser: FirefoxHeadless
	– os: macos-latest
	browser: ChromeHeadless
	include:
	– browser: ChromeHeadless
	browser_name: Chrome
	report_coverage: true
	– browser: FirefoxHeadless
	browser_name: Firefox
	report_coverage: false
	– browser: SafariNative
	browser_name: Safari
	report_coverage: false
	steps:
	– uses: actions/setup-node@v2
	with:
	node-version: 14
	– uses: actions/download-artifact@v2
	with:
	name: workspace
	path: /tmp
	– run: tar -zxf /tmp/vivid-env.tar.gz
	– run: yarn karma start –coverage –browsers=${{ matrix.browser }}
	id: test
	– uses: coverallsapp/github-action@master
	name: Report coverage information to coveralls
	if: ${{ matrix.report_coverage }}
	continue-on-error: true
	with:
	parallel: false
	github-token: ${{ github.token }}
	path-to-lcov: ./coverage/report-lcov/lcov.info
	flag-name: Tested on ${{ matrix.os }} / ${{ matrix.browser }}
	– run: exit 0
	if: ${{ steps.test.outcome == 'success' }}

	test_for_visual_regression:
	if: github.event.pull_request.draft == false
	needs: build
	name: Test Components Graphics
	runs-on: macos-latest
	env:
	GITHUB_TOKEN: ${{ secrets.VNG_VIVID_PAT }}
	steps:
	– uses: actions/setup-node@v2
	with:
	node-version: 14
	– uses: actions/download-artifact@v2
	with:
	name: workspace
	path: /tmp
	– run: tar -zxf /tmp/vivid-env.tar.gz
	– run: npm rebuild playwright && yarn playwright install-deps
	env:
	GITHUB_TOKEN: ${{ secrets.VNG_VIVID_PAT }}
	– run: yarn ui-tests
	– uses: actions/upload-artifact@v2
	if: ${{ always() }}
	with:
	name: snapshot
	path: ./ui-tests/snapshots/*.png

	test_static:
	if: github.event.pull_request.draft == false
	needs: build
	name: ${{ matrix.script_name }}
	runs-on: ubuntu-20.04
	env:
	GITHUB_TOKEN: ${{ secrets.VNG_VIVID_PAT }}
	strategy:
	max-parallel: 10
	matrix:
	script:
	– lint
	include:
	– script: lint
	script_name: Test Lint rules
	steps:
	– uses: actions/setup-node@v2
	with:
	node-version: 14
	– uses: actions/download-artifact@v2
	with:
	name: workspace
	path: /tmp
	– run: tar -zxf /tmp/vivid-env.tar.gz
	– run: yarn ${{ matrix.script }}

view raw pull-requet.yml hosted with ❤ by GitHub

So we still have an ugly file. Around half the lines of code, so it is a bit more maintainable. It is still hard to understand. What would we have done if it was our business logic code?

Split to Modules!!!

And this is where the Workflow Calls come into play. This API was introduced at a pretty late stage (around September 2021).

With workflow calls you can modularize your workflows into different files and call them from other workflows – just like you would a function or a module. You can even send parameters. So you see, our complex hardly maintainable code becomes much better:

	name: 🏗 Lint & Build

	on: workflow_call

	jobs:
	build:
	runs-on: ubuntu-latest
	steps:
	– uses: actions/checkout@v2
	– uses: actions/setup-node@v2
	with:
	node-version: '16'
	cache: 'npm'
	– run: npm install
	– run: npm run lint
	– run: npm run build

view raw build-and-lint.yml hosted with ❤ by GitHub

	name: '🧬 Pre Release'

	on:
	push:
	branches: main

	concurrency:
	group: ci-pre-release-${{ github.ref }}-1
	cancel-in-progress: true

	jobs:
	call-lint-and-build:
	uses: vonage/vivid-3/.github/workflows/_lint-and-build.yml@main

	call-unit-tests:
	needs: call-lint-and-build
	uses: vonage/vivid-3/.github/workflows/_unit-tests.yml@main

	call-upload-artifact:
	needs: call-unit-tests
	uses: vonage/vivid-3/.github/workflows/_upload-artifact.yml@main

	call-pre-release:
	needs: call-upload-artifact
	uses: vonage/vivid-3/.github/workflows/_publish-package.yml@main
	with:
	version: 3.0.0

view raw pre-release.yml hosted with ❤ by GitHub

	name: '📦 Publish Package'

	on:
	workflow_call:
	input:
	version:
	type: string
	required: true
	description: Version to bump to

	jobs:
	release:
	name: Publish
	runs-on: ubuntu-latest
	steps:
	– name: Checkout
	uses: actions/checkout@v2

	– name: Download
	uses: actions/download-artifact@v2
	with:
	name: public-artifact

	– name: Setup Node.js
	# Setup .npmrc file to publish to npm
	uses: actions/setup-node@v2
	with:
	node-version: 'lts/*'
	registry-url: 'https://npm.pkg.github.com'

	– name: Install
	run: npm ci

	– name: Bump
	env:
	short_head: $(git rev-parse –short HEAD)
	run: npm version ${{ inputs.version }} –tag latest –no-git-tag-version –no-push

	– name: Publish
	run: npm publish –access public –tag next –dry-run
	env:
	NODE_AUTH_TOKEN: ${{ secrets.NPM_TOKEN }}

view raw publish-package.yml hosted with ❤ by GitHub

	name: '🧳 Upload Artifact'

	on: workflow_call

	jobs:
	upload:
	name: "Upload Build Artifact"
	runs-on: ubuntu-latest
	# env:
	# GITHUB_TOKEN: ${{ github.token }}
	steps:
	– uses: actions/checkout@v2
	– uses: actions/setup-node@v2
	with:
	node-version: '16'
	– run: npm ci
	– run: npm run build

	– uses: actions/upload-artifact@v2
	if: always()
	with:
	name: public-artifact
	path: \|
	package.json
	package-lock.json
	LICENSE.md
	dist
	.eleventy.js
	11ty
	if-no-files-found: error

view raw upload-artifacts.yml hosted with ❤ by GitHub

The pre-release phase and its modules.

In the new modules code we have different files that can be called from anywhere. The build and lint workflow can be used both in the CD (as we see here) as well as in the CI. Same code – used twice.

Neat, ha?

#3: Speeding the Workflows with Caching and Artifacts

Great! we can trigger workflows. Now let’s speed them up a bit. The big hammer that gets the job done – that’s what I see in my mind when I think about caching. We have so many precise optimizations nowdays – but caching is by far the one that solves most of our performance issues while I believe it is the most primitive one.

Now the problem is this – you want to save time. Not only computation time costs money. Not only more computation creates more pollution. Longer processes cost time to… you! The developer who now has to wait until that stupid robot finishes its CI process.

So… a really quick optimization is to use caching. It can be as simple as caching the npm:

- uses: actions/setup-node@v2
  with:
    node-version: '16'
    cache: 'npm'
- run: npm install

By using this super simple trick (cache: 'npm') we just told Github Actions to cache our npm file as long as our package.lock file is still the same.

You can do more complex caching using the cache action:

      - name: Cache yarn dependencies
        uses: actions/cache@v2
        id: yarn-cache
        with:
          path: |
            ${{ steps.yarn-cache-dir-path.outputs.dir }}
            **/node_modules
          key: our-cache-yarn-${{ hashFiles('**/yarn.lock.json') }}

      - name: Install packages
        if: steps.yarn-cache.outputs.cache-hit != 'true'
        run: yarn

In the code above we used the cache action (uses: actions/cache@v2) in order to cache our yarn install process. The cache hash is set according to the yarn.lock file. If there’s a cache hit, it will take that cache and use it.

In the installation step, we condition our installation in the absence of cache – so we install only if we need to. This can save MINUTES in every workflow!

You can achieve the same with artifacts:

      - run: yarn lerna run build --stream --concurrency=15 --include-dependencies
      - run: tar -zcf /tmp/vivid-env.tar.gz .
      - uses: actions/upload-artifact@v2
        with:
          name: workspace
          path: /tmp/vivid-env.tar.gz

Here we build our components in a multi repo (after we have everything installed) and then we gzip the whole folder and upload it as an artifact.

Then, anywhere in our workflows we can get our artifact and use a ready build and node_modules folder:

- uses: actions/download-artifact@v2
  with:
    name: workspace
    path: /tmp

Much like a docker container 😉

This little trick will save you tons of running time both for build and for installations.

#4: Parallelism and Synchronous Operations

Jobs and workflows run in parallel by default. Steps run sequentially. So if you have one job that’s running:

yarn => yarn build => yarn lint => yarn test

You are good to go.

But, you’d like to do better than that. Let’s take the simple case of caching.

The build job:

yarn => yarn build => cache node_modules and build

The test job:

yarn => yarn test

The lint job:

yarn => yarn lint

The visual regression test job:

yarn => yarn build => yarn visual-regression

Now wait a minute – why run the install in all of them?

We could just create a job that installs and builds and caches that as we learned in the caching part. But… we also said that the jobs run in parallel. That means, we can’t tell if our installation and build finished before we get to the installation and build in the other jobs.

For this we have the needs property. It takes care of dependencies. That means, that if a job needs to run after a some build step, it will wait for it. We already saw it in the code snippets above. Let’s look at the workflow_call example:

name: '🧬 Pre Release'

on:
  push:
    branches: main

jobs:
  call-lint-and-build:
    uses: vonage/vivid-3/.github/workflows/_lint-and-build.yml@main

  call-unit-tests:
    needs: call-lint-and-build
    uses: vonage/vivid-3/.github/workflows/_unit-tests.yml@main

  call-upload-artifact:
    needs: call-unit-tests
    uses: vonage/vivid-3/.github/workflows/_upload-artifact.yml@main

  call-pre-release:
    needs: call-upload-artifact
    uses: vonage/vivid-3/.github/workflows/_publish-package.yml@main
    with:
      version: 3.0.0

The call-lint-and-build is called first. The call-unit-tests depends on it and will start only when the build finishes. After the test we upload artifacts. The artifacts are later used in the call-pre-release.

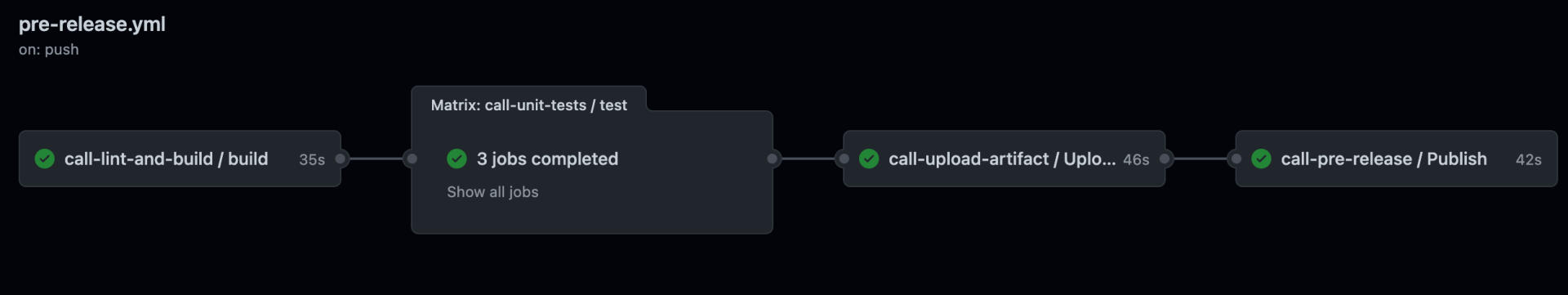

Github actions creates diagrams for us and it looks like this:

Of course this is not an optimal solution for anything and just a show case, but you can play with it and use the principle to create the optimal solution for your use case.

#5: Repository Integration Rules

We have our actions setup. That’s cool. Now it’s time to use their super powers to enforce some laws.

With github actions, being part of github, it is super easy.

Settings => Branches => Add Rule

branch settings — Go to `Settings => Branches => Add rule`

Here we’ll select Require status checks to pass before merging and check everything underneath it. You’ll see all workflows that are required to enable merge – in our case we only have build-test.

For Branch name pattern insert main and create the rule. And if you go back to the pull request page, you’ll see that no pull requests can be merged before the tests pass, unless of course you have admin privileges.

cannot merge yet — It looks kind of like this – and it makes sure people can’t merge without a pull request. This acts as a quality gateway for your whole repository!

#6: Saving Computation Time by Stopping Obsolete Workflows

We’ve optimized and safeguarded our CI/CD flow. Can we optimize more? Yes we can!

Let’s say you created a Pull Request. Our CI flow started rolling.

Now you forgot to add something in the code – you make a quick fix which takes 2 seconds and push it.

What happens now, by default, is that the old workflow keeps on running, while your last push initiated another one. That is resource wasting 101! How can we tell one workflow a new child spawned and it can stop?

The answer is: The Concurrency property!

name: Master Pull Request

on:
  pull_request:
    branches:
      - main

concurrency:
  group: ci-tests-${{ github.ref }}-1
  cancel-in-progress: true

By adding the concurrency and setting cancel-in-progress to true, github actions will search for a running process of the same group and stop it before starting a new one. How neat is that? Your devops team will LOVE you for it!

#7: Use Your Own Docker Image in Github Actions

Sometimes, you will have your own special needs. For instance, you will have your own setup or even proprietary software needed for compilation environment.

In this case, you might find it more useful rather than install all the dependencies (JAVA runtime, python, special language libraries etc.) just create a docker image of this environment. Then, when you upload it to a hub (e.g. docker hub) you can use it directly in your workflow:

visual-regression:
    needs: build
    runs-on: ubuntu-latest
    container: drizzt99/vonage:1.0.0
    env:
      GITHUB_TOKEN: ${{ github.token }}
    steps:
      - uses: actions/checkout@v2
      - uses: actions/setup-node@v2
        with:
          node-version: '16'
          cache: 'npm'
      - run: npm install
      - run: npm run build && ./scripts/visual-tests/run.tests.sh

The workflow above runs the visual regression checks. I wanted to set the browser versions as well as the playwright versions so as to have less flaky tests. This way, I’ll be able to run the tests locally on the same image it runs on during the CI.

I’ve created a docker image of my setup, uploaded it to docker hub and now I reference it in my yml file via the container property ( container: drizzt99/vonage:1.0.0).

This helps you twofold:

Helps you avoid missing setup processes or misbehaving installations that are OS related
It helps you avoid version mismatch in your CI tools (like I did with playwright and its browser drivers).

Summary

Github actions is awesome. It has its quirks, and it sometimes feels like a beta product. That’s true. But it also advances very fast and the time needed to setup even complex scenarios is relatively short.

I hope that with the tricks above you learned something new. I know this blog post will save me time in the future as I’ll get back to it to use these tricks again.

Thanks a lot to Yinon Oved for the kind and thorough review.

Featured image by Nick Fewings on Unsplash

Facebook Tweet Pin LinkedIn

5 5 votes

Article Rating

5 Comments

Oldest

Newest Most Voted

Inline Feedbacks

View all comments

Steve

1 year ago

Hey, I just started using github actions last week … that was a great article, really useful thanks 🙂

Sara

Hello! Thanks for your article!
I’m having some issues understanding how you reuse the action defined inbuild-and-lint.yml
Could you highlight a bit more how that is used?
Thanks

Author

Yonatan Kra

Reply to Sara

Hi Sara,
The first thing I do is setup `workflow_call` as the trigger.
Then, when I want to use this workflow, I use this line in any job:
`uses: vonage/vivid-3/.github/workflows/_lint-and-build.yml@main`
This tells the action to use the code inside `_lina-and-build.yml` from the branch `main`.
In the example I use it here: reusable workflow usage
Hope this clarifies it 🙂

ramsi

Awesome Info, Thanks a ton!!
I have a question: based on issue template approval, can we do npm install of the required package from package.json file and upload the artifact to jfrog registry? If so, please add that in your list as a tip. Many thanks

Reply to ramsi

You sure can do it.
Just use the appropriate action. For instance, you can use the JFrog CLI in the flow with this action: https://github.com/marketplace/actions/setup-jfrog-cli

Github

7 Github Actions Tricks I Wish I Knew Before I Started

#1: How to Use Github Action Triggers

#2: Reusable Workflows with Workflow Calls

How to Use Github Actions Matrix to Simplify a Flow?

#3: Speeding the Workflows with Caching and Artifacts

#4: Parallelism and Synchronous Operations

#5: Repository Integration Rules

#6: Saving Computation Time by Stopping Obsolete Workflows

#7: Use Your Own Docker Image in Github Actions

Summary

Related

Sign up to my newsletter to enjoy more content:

7 Github Actions Tricks I Wish I Knew Before I Started

#1: How to Use Github Action Triggers

#2: Reusable Workflows with Workflow Calls

How to Use Github Actions Matrix to Simplify a Flow?

#3: Speeding the Workflows with Caching and Artifacts

#4: Parallelism and Synchronous Operations

#5: Repository Integration Rules

#6: Saving Computation Time by Stopping Obsolete Workflows

#7: Use Your Own Docker Image in Github Actions

Summary

Related

Enjoyed the article?

Sign up to my newsletter to enjoy more content:
